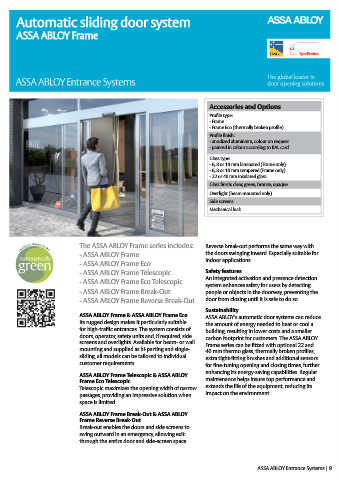

Automatic sliding door system

ASSA ABLOY Frame

Specification Specification

Accessories and Options

Profile type:
- Frame
- Frame Eco (thermally broken profile)
Profile finish:
- anodized aluminium, colour on request
- painted in colour according to RAL card
Glass type:
- 6, 8 or 10 mm laminated (Frame only)
- 6, 8 or 10 mm tempered (Frame only)
- 22 or 40 mm insulated glass
Glass finish: clear, green, bronze, opaque
Overlight (beam mounted only)
Side screens
Mechanical lock

The ASSA ABLOY Frame series includes: Reverse break-out performs the same way with
- ASSA ABLOY Frame the doors swinging inward. Especially suitable for
indoor applications.
- ASSA ABLOY Frame Eco
- ASSA ABLOY Frame Telescopic Safety features
An integrated activation and presence detection
- ASSA ABLOY Frame Eco Telescopic system enhances safety for users by detecting
- ASSA ABLOY Frame Break-Out people or objects in the doorway, preventing the
- ASSA ABLOY Frame Reverse Break-Out door from closing until it is safe to do so.
Sustainability
ASSA ABLOY Frame & ASSA ABLOY Frame Eco ASSA ABLOY’s automatic door systems can reduce
Its rugged design makes it particularly suitable the amount of energy needed to heat or cool a
for high-traffic entrances. The system consists of building, resulting in lower costs and a smaller
doors, operator, safety units and, if required, side carbon footprint for customers. The ASSA ABLOY
screens and overlights. Available for beam- or wall Frame series can be fitted with optional 22 and
mounting and supplied as bi-parting and single- 40 mm thermo glass, thermally broken profiles,
sliding, all models can be tailored to individual extra tight-fitting brushes and additional sensors
customer requirements. for fine-tuning opening and closing times, further
enhancing its energy-saving capabilities. Regular
ASSA ABLOY Frame Telescopic & ASSA ABLOY
Frame Eco Telescopic maintenance helps insure top performance and
Telescopic maximizes the opening width of narrow extends the life of the equipment, reducing its
passages, providing an impressive solution when impact on the environment.
space is limited.

ASSA ABLOY Frame Break-Out & ASSA ABLOY
Frame Reverse Break-Out
Break-out enables the doors and side screens to
swing outward in an emergency, allowing exit
through the entire door and side-screen space.

assaabloyentrance.com
ASSA ABLOY Entrance Systems | 9
