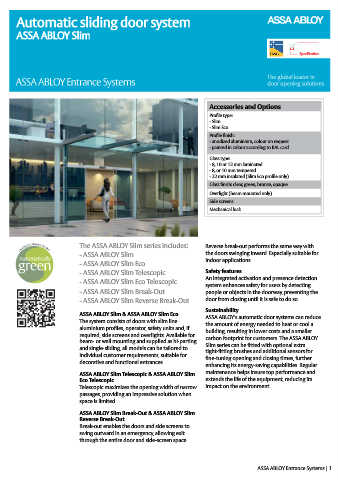

Page 3 - ASSA ABLOY Entrance Systems
P. 3

Automatic sliding door system

       ASSA ABLOY Slim



                                                                                                          Specification  Specification









                                                                          Accessories and Options

                                                                          Profile type:
                                                                          - Slim
                                                                          - Slim Eco
                                                                          Profile finish:
                                                                          - anodized aluminium, colour on request
                                                                          - painted in colour according to RAL card
                                                                          Glass type:
                                                                          - 8, 10 or 12 mm laminated
                                                                          - 8, or 10 mm tempered
                                                                          - 22 mm insulated (Slim Eco profile only)
                                                                          Glass finish: clear, green, bronze, opaque
                                                                          Overlight (beam mounted only)
                                                                          Side screens
                                                                          Mechanical lock






                             The ASSA ABLOY Slim series includes:        Reverse break-out performs the same way with
                             - ASSA ABLOY Slim                           the doors swinging inward. Especially suitable for
                                                                         indoor applications.
                             - ASSA ABLOY Slim Eco
                             - ASSA ABLOY Slim Telescopic                Safety features
                                                                         An integrated activation and presence detection
                             - ASSA ABLOY Slim Eco Telescopic            system enhances safety for users by detecting
                             - ASSA ABLOY Slim Break-Out                 people or objects in the doorway, preventing the
                             - ASSA ABLOY Slim Reverse Break-Out         door from closing until it is safe to do so.
                                                                         Sustainability
                             ASSA ABLOY Slim & ASSA ABLOY Slim Eco       ASSA ABLOY’s automatic door systems can reduce
                             The system consists of doors with slim line   the amount of energy needed to heat or cool a
                             aluminium profiles, operator, safety units and, if   building, resulting in lower costs and a smaller
                             required, side screens and overlights. Available for   carbon footprint for customers. The ASSA ABLOY
                             beam- or wall mounting and supplied as bi-parting   Slim series can be fitted with optional extra
                             and single-sliding, all models can be tailored to   tight-fitting brushes and additional sensors for
                             individual customer requirements, suitable for   fine-tuning opening and closing times, further
                             decorative and functional entrances.
                                                                         enhancing its energy-saving capabilities. Regular
                             ASSA ABLOY Slim Telescopic & ASSA ABLOY Slim   maintenance helps insure top performance and
                             Eco Telescopic                              extends the life of the equipment, reducing its
                             Telescopic maximizes the opening width of narrow   impact on the environment.
                             passages, providing an impressive solution when
                             space is limited.

                             ASSA ABLOY Slim Break-Out & ASSA ABLOY Slim
                             Reverse Break-Out
                             Break-out enables the doors and side screens to
                             swing outward in an emergency, allowing exit
                             through the entire door and side-screen space.



                                                                                                  assaabloyentrance.com
                                                                                           ASSA ABLOY Entrance Systems |  1
   1   2   3   4   5   6   7   8
