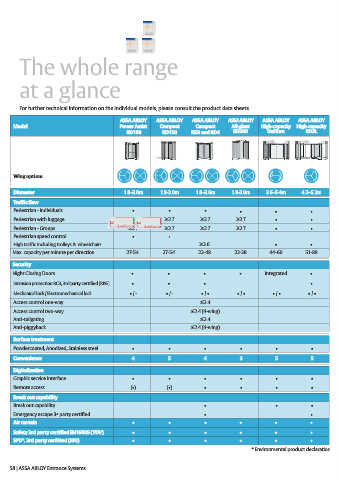

12 | ASSA ABLOY Revolving Doors
The whole range
at a glance
For further technical information on the individual models, please consult the product data sheets.
ASSA ABLOY ASSA ABLOY ASSA ABLOY ASSA ABLOY ASSA ABLOY ASSA ABLOY
Model Power Assist Compact Compact All-glass High-capacity High-capacity
RD100 RD150 RD3 and RD4 RD300 UniTurn RD3L
Wing options
Diameter 1.8–3.0m 1.8-3.0m 1.8–3.6m 1.8–3.0m 3.6–5.4m 4.2–6.2m
Traffic flow
Pedestrian - Individuals • • • • • •
Pedestrian with luggage ≥2.7 ≥2.7 ≥2.7 • •
Pedestrian - Groups ≥2.7 ≥2.7 ≥2.7 ≥2.7 • •
Pedestrian speed control • •
High traffic including trolleys & wheelchairs ≥3.6 • •
Max. capacity per minute per direction 27-54 27-54 22-48 22-38 44-60 51-89
Security
Night Closing Doors • • • • Integrated •
Intrusion protection RC3, 3rd party certified (RISE) • • • •
Mechanical lock / Electromechanical lock • / - • / - • / • • / • • / • • / •
Access control one-way ≤2.4
Access control two-way ≤2.4 (4-wing)
Anti-tailgating ≤2.4
Anti-piggyback ≤2.4 (4-wing)
Surface treatment
Powdercoated, Anodized, Stainless steel • • • • • •
Convenience 4 5 4 3 5 5
Digitalization
Graphic service interface • • • • • •
Remote access (•) (•) • • • •
Break out capability
Break out capability • • •
Emergency escape 3 party certified • •
rd
Air curtain • • • • • •
Safety 3rd party certified EN16005 (TUV) • • • • • •
EPD*, 3rd party cerfitied (IBU) • • • • • •
* Environmental product declaration
