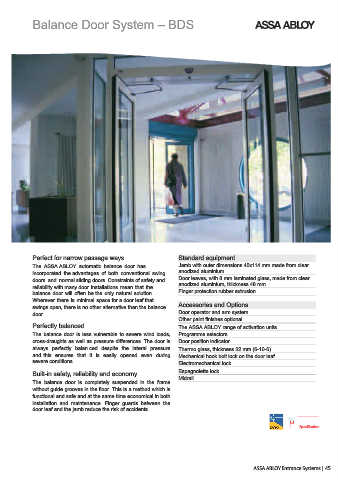

Balance Door System – BDS

Perfect for narrow passage ways Standard equipment
The ASSA ABLOY automatic balance door has Jamb with outer dimensions 45x114 mm made from clear
incorporated the advantages of both conventional swing anodized aluminium
doors and normal sliding doors. Constraints of safety and Door leaves, with 8 mm laminated glass, made from clear
reliability with many door installations mean that the anodized aluminium, thickness 48 mm
balance door will often be the only natural solution. Finger protection rubber extrusion
Wherever there is minimal space for a door leaf that
swings open, there is no other alternative than the balance Accessories and Options
door. Door operator and arm system
Other paint finishes optional
Perfectly balanced The ASSA ABLOY range of activation units

The balance door is less vulnerable to severe wind loads, Programme selectors
cross-draughts as well as pressure differences. The door is Door position indicator
always perfectly balan ced despite the lateral pressure Thermo glass, thickness 22 mm (6-10-6)
and this ensures that it is easily opened even during Mechanical hook bolt lock on the door leaf
severe conditions. Electromechanical lock
Built-in safety, reliability and economy Espagnolette lock
The balance door is completely suspended in the frame Midrail
without guide grooves in the floor. This is a method which is
functional and safe and at the same time economical in both
installation and maintenance. Finger guards between the
door leaf and the jamb reduce the risk of accidents.

Specification Specification
