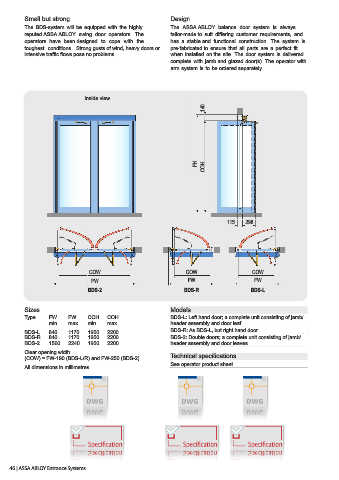

Small but strong Design ASSA ABLOY Revolving Doors.
The BDS-system will be equipped with the highly The ASSA ABLOY balance door system is always
reputed ASSA ABLOY swing door operators. The tailor-made to suit differing custo mer requirements, and
operators have been designed to cope with the has a stable and functional construction. The system is A full range to go full circle.
toughest conditions. Strong gusts of wind, heavy doors or pre-fabricated to ensure that all parts are a perfect fit
intensive traffic flows pose no problems. when installed on the site. The door system is delivered
complete with jamb and glazed door(s). The operator with
arm system is to be ordered separately.
The global leader in
ASSA ABLOY Entrance Systems door opening solutions

Inside view
140

FH COH

115 298

COW COW COW
FW FW FW © All rights in and to this material are the sole property of ASSA ABLOY Entrance Systems AB. Copying, scanning, alterations or modifications are expressly forbidden without the prior written consent of the applicable company within ASSA ABLOY Entrance Systems AB.
BDS-2 BDS-R BDS-L

Sizes Models
Type FW FW COH COH BDS-L: Left hand door; a complete unit consisting of jamb/
min max min max header assem bly and door leaf
BDS-L 840 1170 1950 2200 BDS-R: As BDS-L, but right hand door
BDS-R 840 1170 1950 2200 BDS-2: Double doors; a complete unit consisting of jamb/
BDS-2 1560 2240 1950 2200 header assembly and door leaves
Clear opening width
(COW) = FW-190 (BDS-L/R) and FW-250 (BDS-2) Technical specifications
See operator product sheet
All dimensions in millimetres 1003682-EI-4.0 – Issue 2011-04-28 – Rights reserved for modifications of design and dimensions.

This equipment should be installed, regularly inspected, maintained and serviced by trained and authorized personnel.
Preventive maintenance plans are highly recommended for a proper and safe operation.
Talk to your ASSA ABLOY representative to learn more about ASSA ABLOY Pro-Active Care!
