P. 24

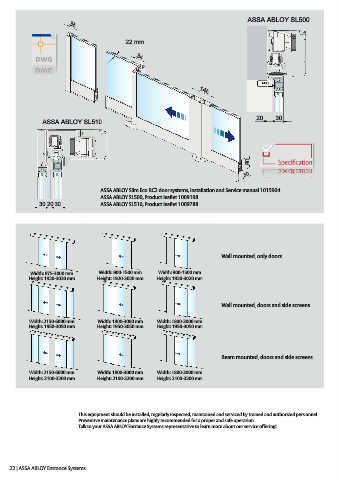

ASSA ABLOY SL500
35
22 mm
34
146
20 30
ASSA ABLOY SL510
80
30
ASSA ABLOY Slim Eco RC2 door systems, Installation and Service manual 1015904
ASSA ABLOY SL500, Product leaflet 1009198
30 20 30 ASSA ABLOY SL510, Product leaflet 1009788
Wall mounted, only doors
Width: 975-3000 mm Width: 900-1500 mm Width: 900-1500 mm
Height: 1920-3020 mm Height: 1920-3020 mm Height: 1920-3020 mm
Wall mounted, doors and side screens © ASSA ABLOY Entrance Systems AB - PD.SL500 Protect/ORG.en-6.0/1811 - 1016323 Technical data subject to change without notice.
Width: 2150-6000 mm Width: 1800-3000 mm Width: 1800-3000 mm
Height: 1950-3050 mm Height: 1950-3050 mm Height: 1950-3050 mm
Beam mounted, doors and side screens
Width: 2150-6000 mm Width: 1800-3000 mm Width: 1800-3000 mm
Height: 2100-3200 mm Height: 2100-3200 mm Height: 2100-3200 mm
This equipment should be installed, regularly inspected, maintained and serviced by trained and authorized personnel.
Preventive maintenance plans are highly recommended for a proper and safe operation.
Talk to your ASSA ABLOY Entrance Systems representative to learn more about our service offering!
