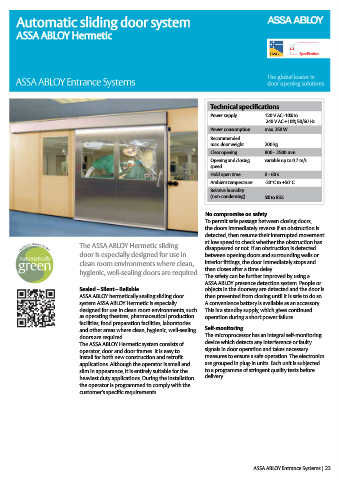

Page 25 - ASSA ABLOY Entrance Systems

Automatic sliding door system

ASSA ABLOY Hermetic

Specification Specification

Technical specifications

Power supply 120 V AC -10% to
240 V AC +10%; 50/60 Hz
Power consumption max. 250 W
Recommended
max. door weight 200 kg
Clear opening 800 – 2500 mm
Opening and closing variable up to 0.7 m/s
speed
Hold open time 0 – 60 s
Ambient temperature -20°C to +50°C
Relative humidity
(non-condensing) 5% to 85%

No compromise on safety
To permit safe passage between closing doors,
the doors immediately reverse if an obstruction is
detected, then resume their interrupted movement
at low speed to check whether the obstruction has
The ASSA ABLOY Hermetic sliding disappeared or not. If an obstruction is detected
door is especially designed for use in between opening doors and surrounding walls or
clean room environments where clean, interior fittings, the door immediately stops and
then closes after a time delay.
hygienic, well-sealing doors are required The safety can be further improved by using a
ASSA ABLOY presence detection system. People or
Sealed – Silent – Reliable objects in the doorway are detected and the door is
ASSA ABLOY hermetically sealing sliding door then prevented from closing until it is safe to do so.
system ASSA ABLOY Hermetic is especially A convenience battery is available as an accessory.
designed for use in clean room environments, such This is a standby supply, which gives continued
as operating theatres, pharmaceutical production operation during a short power failure.
facilities, food preparation facilities, laboratories
and other areas where clean, hygienic, well-sealing Self-monitoring
doors are required. The microprocessor has an integral self-monitoring
The ASSA ABLOY Hermetic system consists of device which detects any interference or faulty
operator, door and door frames. It is easy to signals in door operation and takes necessary
install for both new construction and retrofit measures to ensure a safe operation. The electronics
applications. Although the operator is small and are grouped in plug-in units. Each unit is sub jected
slim in appearance, it is entirely suitable for the to a programme of stringent quality tests before
heaviest duty applications. During the installation delivery.
the operator is programmed to comply with the
customer’s spe ci fic requirements.

assaabloyentrance.com
