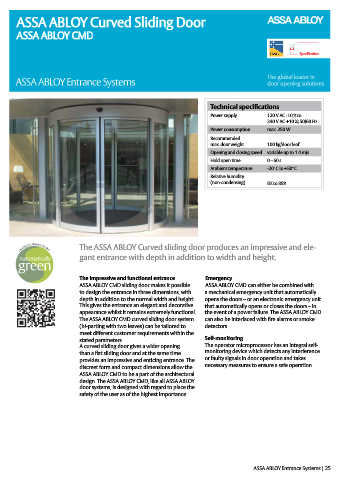

Page 27 - ASSA ABLOY Entrance Systems

ASSA ABLOY Curved Sliding Door

ASSA ABLOY CMD

Specification Specification

Technical specifications

Power supply 120 V AC -10 % to
240 V AC +10 %; 50/60 Hz
Power consumption max. 250 W
Recommended
max. door weight 100 kg/door leaf
Opening and closing speed variable up to 1.4 m/s
Hold open time 0 – 60 s
Ambient temperature -20°C to +50°C
Relative humidity
(non-condensing) 5% to 85%

The ASSA ABLOY Curved sliding door produces an impressive and ele-
gant entrance with depth in addition to width and height.

The impressive and functional entrance Emergency
ASSA ABLOY CMD sliding door makes it possible ASSA ABLOY CMD can either be combined with
to design the entrance in three dimensions, with a mechanical emergency unit that automatically
depth in addition to the normal width and height. opens the doors – or an electronic emergency unit
This gives the entrance an elegant and decorative that automatically opens or closes the doors – in
appearance whilst it remains extremely functional. the event of a power failure. The ASSA ABLOY CMD
The ASSA ABLOY CMD curved sliding door system can also be interfaced with fire alarms or smoke
(bi-parting with two leaves) can be tailored to detectors.
meet different customer requirements within the
stated parameters. Self-monitoring
A curved sliding door gives a wider ope ning The operator microprocessor has an integral self-
than a flat sliding door and at the same time monitoring device which detects any interference
provides an impressive and enticing entrance. The or faulty signals in door operation and takes
discreet form and compact dimensions allow the necessary measures to ensure a safe operation.
ASSA ABLOY CMD to be a part of the architectural
design. The ASSA ABLOY CMD, like all ASSA ABLOY
door systems, is designed with regard to place the
safety of the user as of the highest importance.
