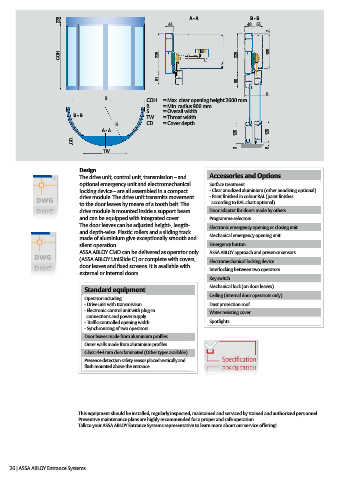

A - A B - B
225 46 46 55
7

COH 225 225 189

61
80
R
S COH = Max. clear opening height 2600 mm
R = Min. radius 900 mm
S = Overall width
B - B TW = Throat width
R CD = Cover depth
A - A
120 120
CD
TW 3 8

Design
The drive unit, control unit, transmission – and Accessories and Options
optional emergency unit and electromechanical Surface treatment
locking device – are all assembled in a compact - Clear anodized aluminium (other anodizing optional)
drive mo dule. The drive unit transmits movement - Paint finished in colour RAL (paint finishes
to the door leaves by means of a tooth belt. The according to RAL chart optional)
drive module is mounted inside a support beam Door adaptor for doors made by others
and can be equipped with integrated cover. Programme selectors
The door leaves can be adjus ted height-, length- Electronic emergency opening or closing unit
and depth-wise. Plastic rollers and a sliding track
made of aluminium give excep tionally smooth and Mechanical emergency opening unit
silent operation. Emergency button
ASSA ABLOY CMD can be delivered as operator only ASSA ABLOY approach and presence sensors
(ASSA ABLOY UniSlide C) or complete with covers, Electromechanical locking device
door leaves and fixed screens. It is available with
external or internal doors. Interlocking between two operators
Key switch

Standard equipment Mechanical lock (on door leaves)
Ceiling (internal door operators only)
Operator including
- Drive unit with transmission Dust protection roof © ASSA ABLOY Entrance Systems AB - PD.CMD/ORG.en-GB-8.0/1803 - 1003787 Technical data subject to change without notice.
- Electronic control unit with plug-in Water resisting cover
connections and power supply
- Traffic-controlled opening width Spotlights
- Synchronizing of two operators
Door leaves made from aluminium profiles
Outer walls made from aluminium profiles
Glass: 4+4 mm clear laminated (Other types available)
Presence detection safety sensor placed vertically and
flush mounted above the entrance
