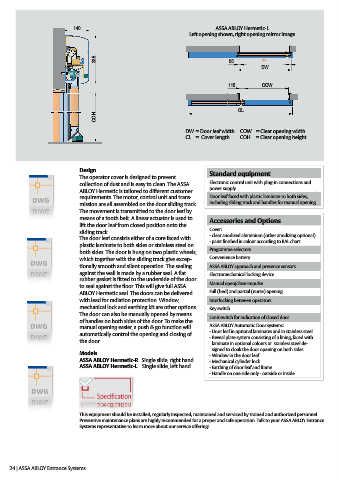

140 ASSA ABLOY Hermetic-L
Left opening shown, right opening mirror image

285 55 55
DW

115 COW

CL
COH

DW = Door leaf width COW = Clear opening width
CL = Cover length COH = Clear opening height

Design
The operator cover is designed to prevent Standard equipment
collection of dust and is easy to clean. The ASSA Electronic control unit with plug-in connections and
ABLOY Hermetic is tailor ed to different customer power supply
requirements. The motor, control unit and trans- Door leaf faced with plastic laminate to both sides,
mis sion are all assembled on the door sliding track. including sliding track and handles for manual opening
The move ment is trans mitted to the door leaf by
means of a tooth belt. A linear actuator is used to Accessories and Options
lift the door leaf from closed position onto the
sliding track. Cover:
The door leaf consists either of a core faced with - clear anodized aluminium (other anodizing optional)
plastic laminate to both sides or stainless steel on - paint finished in colour according to RAL chart
both sides. The door is hung on two plastic wheels, Programme selectors
which together with the sliding track give excep- Convenience battery
tion ally smooth and silent opera tion. The sealing ASSA ABLOY approach and presence sensors
against the wall is made by a rubber seal. A flat Electromechanical locking device
rubber gasket is fitted to the under side of the door
to seal against the floor. This will give full ASSA Manual open/close impulse
ABLOY Hermetic seal. The doors can be delivered Full (bed) and partial (nurse) opening
with lead for radiation protection. Window, Interlocking between operators
mechanical lock and earthing kit are other options. Key switch © ASSA ABLOY Entrance Systems AB - PD.Hermetic/ORG.en-7.0/1803 - 1003753 Technical data subject to change without notice.
The door can also be manually opened by means
of handles on both sides of the door. To make the Limit switch for indication of closed door
manual opening easier, a push & go function will ASSA ABLOY Automatic Door systems:
automatically control the opening and closing of - Door leaf in optional laminates and in stainless steel
the door. - Reveal plate system consisting of a lining, faced with
laminate in optional colours or stainless steel de-
Models signed to cloak the door opening on both sides
ASSA ABLOY Hermetic-R Single slide, right hand - Window in the door leaf
- Mechanical cylinder lock
ASSA ABLOY Hermetic-L Single slide, left hand - Earthing of door leaf and frame
- Handle on one side only - outside or inside

This equipment should be installed, regularly inspected, maintained and serviced by trained and authorized personnel.
Preventive maintenance plans are highly recommended for a proper and safe operation. Talk to your ASSA ABLOY Entrance
Systems representative to learn more about our service offering!
