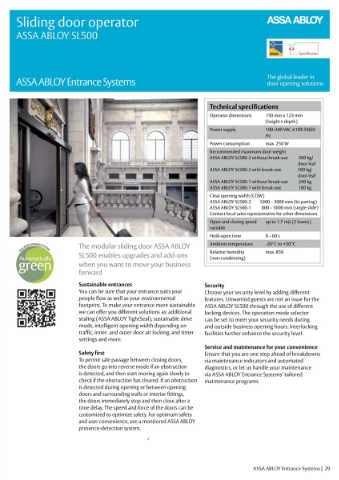

Sliding door operator

ASSA ABLOY SL500

Specification Specification

Technical specifications

Operator dimensions 150 mm x 123 mm
(height x depth)
Power supply 100-240 VAC ±10% 50/60
Hz
Power consumption max. 250 W
Recommended maximum door weight
ASSA ABLOY SL500-2 without break-out 200 kg/
door leaf
ASSA ABLOY SL500-2 with break-out 100 kg/
door leaf
ASSA ABLOY SL500-1 without break-out 240 kg
ASSA ABLOY SL500-1 with break-out 100 kg
Clear opening width (COW)
ASSA ABLOY SL500-2 1000 – 3000 mm (bi-parting)
ASSA ABLOY SL500-1 800 – 3000 mm (single slide)
Contact local sales representative for other dimensions.
Open and closing speed up to 1.7 m/s (2 leaves)
variable
Hold-open time 0 – 60 s
The modular sliding door ASSA ABLOY Ambient temperature -20°C to +50°C
SL500 enables upgrades and add-ons Relative humidity max. 85%
(non-condensing)
when you want to move your business
forward

Sustainable entrances Security
You can be sure that your entrance suits your Choose your security level by adding different
people flow as well as your environmental features. Unwanted guests are not an issue for the
footprint. To make your entrance more sustainable ASSA ABLOY SL500 through the use of different
we can offer you different solutions as: additional locking devices. The operation mode selector
sealing (ASSA ABLOY TightSeal), sustainable drive can be set to meet your security needs during
mode, intelligent opening width depending on and outside business opening hours. Interlocking
traffic, inner- and outer door air locking, and timer facilities further enhance the security level.
settings and more.
Service and maintenance for your convenience
Safety first Ensure that you are one step ahead of breakdowns
To permit safe passage between closing doors, via maintenance indicators and automated
the doors go into reverse mode if an obstruction diagnostics, or let us handle your maintenance
is detected, and then start moving again slowly to via ASSA ABLOY Entrance Systems’ tailored
check if the obstruction has cleared. If an obstruction maintenance programs.
is detected during opening or between opening
doors and surrounding walls or interior fittings,
the doors immediately stop and then close after a
time delay. The speed and force of the doors can be
customized to optimize safety. For optimum safety
and user convenience, use a monitored ASSA ABLOY
presence-detection system.

2
