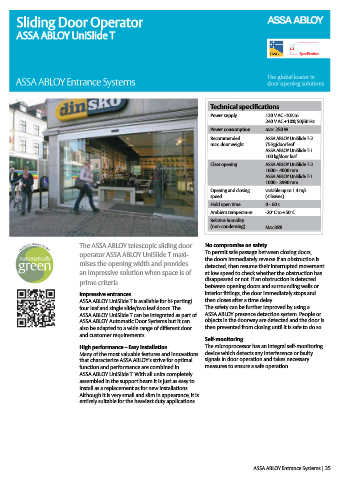

Page 37 - ASSA ABLOY Entrance Systems

Sliding Door Operator

ASSA ABLOY UniSlide T

Specification Specification

Technical specifications

Power supply 120 V AC -10% to
240 V AC +10%; 50/60 Hz
Power consumption max. 250 W
Recommended ASSA ABLOY UniSlide T-2
max. door weight 75 kg/door leaf
ASSA ABLOY UniSlide T-1
100 kg/door leaf
Clear opening ASSA ABLOY UniSlide T-2
1600 – 4000 mm
ASSA ABLOY UniSlide T-1
1000 – 3990 mm
Opening and closing variable up to 1.4 m/s
speed (4 leaves)
Hold open time 0 – 60 s
Ambient temperature -20°C to +50°C
Relative humidity
(non-condensing) Max 85%

The ASSA ABLOY telescopic sliding door No compromise on safety
operator ASSA ABLOY UniSlide T maxi- To permit safe passage between closing doors,
the doors immediately reverse if an obstruction is
mises the opening width and provides detected, then resume their interrupted movement
an impressive solution when space is of at low speed to check whether the obstruction has
prime criteria disappeared or not. If an obstruction is detected
between opening doors and surrounding walls or
Impressive entrances interior fittings, the door immediately stops and
ASSA ABLOY UniSlide T is available for bi-parting/ then closes after a time delay.
four leaf and single slide/two leaf doors. The The safety can be further improved by using a
ASSA ABLOY UniSlide T can be integrated as part of ASSA ABLOY presence detection system. People or
ASSA ABLOY Automatic Door Systems but it can objects in the doorway are detected and the door is
also be adapted to a wide range of different door then prevented from closing until it is safe to do so.
and customer requirements.
Self-monitoring
High performance – Easy installation The microprocessor has an integral self-monitoring
Many of the most valuable features and innovations device which detects any interference or faulty
that characterize ASSA ABLOY’s strive for optimal signals in door operation and takes necessary
function and performance are combined in measures to ensure a safe operation.
ASSA ABLOY UniSlide T. With all units completely
assembled in the support beam it is just as easy to
install as a replacement as for new installations.
Although it is very small and slim in appearance, it is
entirely suitable for the heaviest duty applications.

assaabloyentrance.com
