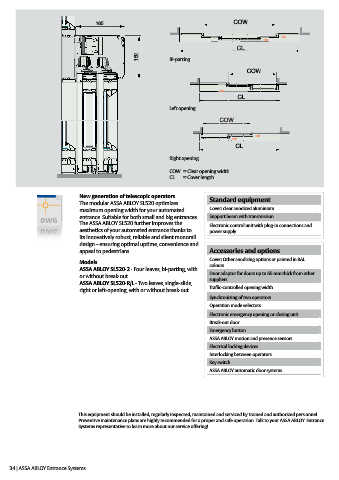

165 COW

CL
150 Bi-parting

COW

CL

Left opening

COW

CL

Right opening

COW = Clear opening width
CL = Cover length

New generation of telescopic operators
The modular ASSA ABLOY SL520 optimizes Standard equipment
maximum opening width for your automated Cover: clear anodized aluminium
entrance. Suitable for both small and big entrances. Support beam with transmission
The ASSA ABLOY SL520 further improves the Electronic control unit with plug-in connections and
aesthetics of your automated entrance thanks to power supply
its innovatively robust, reliable and silent monorail
design – ensuring optimal uptime, convenience and
appeal to pedestrians. Accessories and options
Cover: Other anodizing options or painted in RAL
Models colours
ASSA ABLOY SL520-2 - Four leaves, bi-parting, with
or without break-out Door adaptor for doors up to 65 mm thick from other
suppliers
ASSA ABLOY SL520-R/L - Two leaves, single-slide,
right or left-opening, with or without break-out Traffic-controlled opening width
Synchronizing of two operators
Operation mode selectors
Electronic emergency opening or closing unit © ASSA ABLOY Entrance Systems AB - SL520/ORG.en-6.0/1803 - 1009199 Technical data subject to change without notice.
Break-out door
Emergency button
ASSA ABLOY motion and presence sensors
Electrical locking devices
Interlocking between operators
Key switch
ASSA ABLOY automatic door systems

This equipment should be installed, regularly inspected, maintained and serviced by trained and authorized personnel.
Preventive maintenance plans are highly recommended for a proper and safe operation. Talk to your ASSA ABLOY Entrance
Systems representative to learn more about our service offering!
