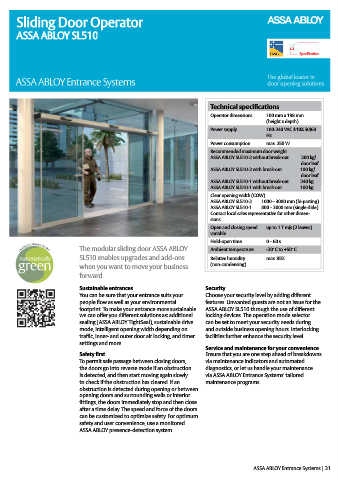

Page 33 - ASSA ABLOY Entrance Systems

Sliding Door Operator

ASSA ABLOY SL510

Specification Specification

Technical specifications

Operator dimensions 100 mm x 198 mm
(height x depth)
Power supply 100-240 VAC ±10% 50/60
Hz
Power consumption max. 250 W
Recommended maximum door weight
ASSA ABLOY SL510-2 without break-out 200 kg/
door leaf
ASSA ABLOY SL510-2 with break-out 100 kg/
door leaf
ASSA ABLOY SL510-1 without break-out 240 kg
ASSA ABLOY SL510-1 with break-out 100 kg
Clear opening width (COW)
ASSA ABLOY SL510-2 1000 – 3000 mm (bi-parting)
ASSA ABLOY SL510-1 800 – 3000 mm (single slide)
Contact local sales representative for other dimen-
sions.
Open and closing speed up to 1.7 m/s (2 leaves)
variable
Hold-open time 0 – 60 s
The modular sliding door ASSA ABLOY Ambient temperature -20°C to +50°C
SL510 enables upgrades and add-ons Relative humidity max. 85%
when you want to move your business (non-condensing)
forward
Sustainable entrances Security
You can be sure that your entrance suits your Choose your security level by adding different
people flow as well as your environmental features. Unwanted guests are not an issue for the
footprint. To make your entrance more sustainable ASSA ABLOY SL510 through the use of different
we can offer you different solutions as: additional locking devices. The operation mode selector
sealing (ASSA ABLOY TightSeal), sustainable drive can be set to meet your security needs during
mode, intelligent opening width depending on and outside business opening hours. Interlocking
traffic, inner- and outer door air locking, and timer facilities further enhance the security level.
settings and more.
Service and maintenance for your convenience
Safety first Ensure that you are one step ahead of breakdowns
To permit safe passage between closing doors, via maintenance indicators and automated
the doors go into reverse mode if an obstruction diagnostics, or let us handle your maintenance
is detected, and then start moving again slowly via ASSA ABLOY Entrance Systems’ tailored
to check if the obstruction has cleared. If an maintenance programs.
obstruction is detected during opening or between
opening doors and surrounding walls or interior
fittings, the doors immediately stop and then close
after a time delay. The speed and force of the doors
can be customized to optimize safety. For optimum
safety and user convenience, use a monitored
ASSA ABLOY presence-detection system.
