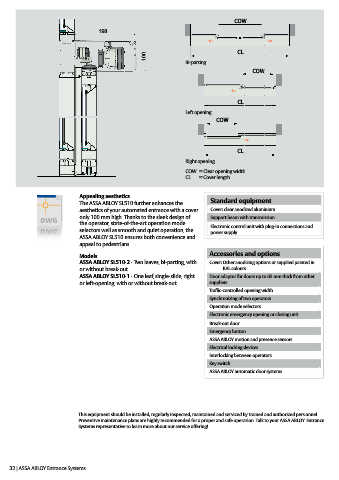

COW
198

CL
100
Bi-parting
COW

CL
Left opening
COW

CL

Right opening
COW = Clear opening width
CL = Cover length

Appealing aesthetics
The ASSA ABLOY SL510 further enhances the Standard equipment
aesthetics of your automated entrance with a cover Cover: clear anodized aluminium
only 100 mm high. Thanks to the sleek design of Support beam with transmission
the operator, state-of-the-art operation mode Electronic control unit with plug-in connections and
selectors well as smooth and quiet operation, the power supply
ASSA ABLOY SL510 ensures both convenience and
appeal to pedestrians.
Models Accessories and options
ASSA ABLOY SL510-2 - Two leaves, bi-parting, with Cover: Other anodizing options or supplied painted in
or without break-out RAL colours
ASSA ABLOY SL510-1 - One leaf, single-slide, right Door adaptor for doors up to 65 mm thick from other
or left-opening, with or without break-out suppliers
Traffic-controlled opening width
Synchronizing of two operators
Operation mode selectors © ASSA ABLOY Entrance Systems AB - PD.SL510/ORG.en-2.0/1803 - 1009788 Technical data subject to change without notice.
Electronic emergency opening or closing unit
Break-out door
Emergency button
ASSA ABLOY motion and presence sensors
Electrical locking devices
Interlocking between operators
Key switch
ASSA ABLOY automatic door systems

This equipment should be installed, regularly inspected, maintained and serviced by trained and authorized personnel.
Preventive maintenance plans are highly recommended for a proper and safe operation. Talk to your ASSA ABLOY Entrance
Systems representative to learn more about our service offering!
