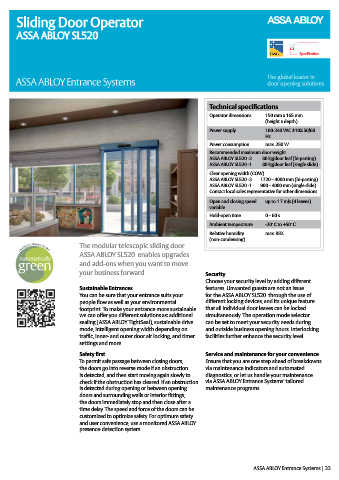

Sliding Door Operator

       ASSA ABLOY SL520



                                                                                                          Specification  Specification









                                                                          Technical specifications

                                                                          Operator dimensions  150 mm x 165 mm
                                                                                              (height x depth)
                                                                          Power supply        100-240 VAC ±10% 50/60
                                                                                              Hz
                                                                          Power consumption   max. 250 W
                                                                          Recommended maximum door weight
                                                                          ASSA ABLOY SL520 -2           80 kg/door leaf (bi-parting)
                                                                          ASSA ABLOY SL520 -1           80 kg/door leaf (single slide)
                                                                          Clear opening width (COW)
                                                                          ASSA ABLOY SL520 -2         1720 – 4000 mm (bi-parting)
                                                                          ASSA ABLOY SL520 -1         900 – 4000 mm (single slide)
                                                                          Contact local sales representative for other dimensions.
                                                                          Open and closing speed   up to 1.7 m/s (4 leaves)
                                                                          variable
                                                                          Hold-open time      0 – 60 s
                                                                          Ambient temperature  -20°C to +50°C
                                                                          Relative humidity    max. 85%
                                                                          (non-condensing)
                             The modular telescopic sliding door
                             ASSA ABLOY SL520  enables upgrades
                             and add-ons when you want to move
                             your business forward                       Security
                                                                         Choose your security level by adding different
                             Sustainable Entrances                       features. Unwanted guests are not an issue
                             You can be sure that your entrance suits your   for the ASSA ABLOY SL520  through the use of
                             people flow as well as your environmental   different locking devices, and its unique feature
                             footprint. To make your entrance more sustainable   that all individual door leaves can be locked
                             we can offer you different solutions as: additional   simultaneously. The operation mode selector
                             sealing (ASSA ABLOY TightSeal), sustainable drive   can be set to meet your security needs during
                             mode, intelligent opening width depending on   and outside business opening hours. Interlocking
                             traffic, inner- and outer door air locking, and timer   facilities further enhance the security level.
                             settings and more.

                             Safety first                                Service and maintenance for your convenience
                             To permit safe passage between closing doors,   Ensure that you are one step ahead of breakdowns
                             the doors go into reverse mode if an obstruction   via maintenance indicators and automated
                             is detected, and then start moving again slowly to   diagnostics, or let us handle your maintenance
                             check if the obstruction has cleared. If an obstruction   via ASSA ABLOY Entrance Systems’ tailored
                             is detected during opening or between opening   maintenance programs.
                             doors and surrounding walls or interior fittings,
                             the doors immediately stop and then close after a
                             time delay. The speed and force of the doors can be
                             customized to optimize safety. For optimum safety
                             and user convenience, use a monitored ASSA ABLOY
                             presence-detection system.





                                                                                                  assaabloyentrance.com
                                                                                          ASSA ABLOY Entrance Systems |  33
